WoodWorks Channeled Vector - 5903W9

Line: WoodWorks Channeled Vector

Product Type
Chat Live

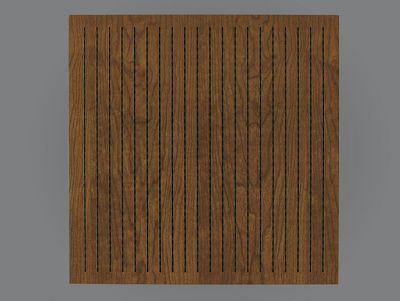

WoodWorks Channeled Vector
Item # 5903W9      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions: 24 x 24 x 3/4 IN
Edge Profile: Vector
Perforation Design: W9
Shape: Panel
Available Colors:
Natural Variations Dark Cherry Natural Variations Dark Cherry
Natural Variations Light Cherry Natural Variations Light Cherry
Natural Variations Maple Natural Variations Maple

PERFORMANCE SELECTION

Acoustics NRC: High Acoustical 0.65
Acoustics CAC:   N/A
Acoustics AC:   N/A
Fire Resist/ Flame spread:   Class A (HPVA)
Humidity Resistance:   Standard
Clean Room Classification: None
Anti-microbial:   Standard

Accessibility

Accessibility: Yes

PHYSICAL DATA

Material: Fire-retardant Medium Density Fiberboard
Texture: Smooth
Pattern: Planks
Surface Finish: Ultra-violet clear semi-gloss coating
Weight: 2.2 (lbs/sqft)
Sq Ft (Sq Ft/Carton): 16.0
ASTM Classification: Type: N/A, Form: N/A, Pattern: N/A
Insulation Value: R Factor-BTU: N/A , R Factor-Watts: N/A

INSTALLATION SELECTION

Installation Method: Grid (Suspended)
Recommended Grid Systems
Formations Axiom
Prelude ML 15/16" Exposed Tee

Prelude XL 15/16" Exposed Tee
