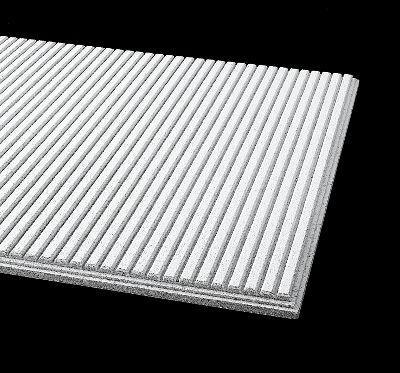

Graphis Rustex - Linear Beveled - 2602

Line: Graphis Rustex

Product Type
Product Family

DOWNLOADS

TOOLS

RECYCLED CONTENT & LEED CREDITS

Total Recycled Content: 72%
Post-consumer Recycled Content: 2%
Pre-consumer Recycled Content: 69%
LEED v4 & 2009 Information
Armstrong Ceiling Recycling Program
Item # 2602      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions: 24 x 24 x 3/4 IN
Edge Profile: Beveled Tegular
Download dwg format

Visual Design: Linear Beveled
Shape: Panel
Available Colors:
White White

White

PERFORMANCE SELECTION

Acoustics NRC:   0.55
Acoustics CAC:   30
Fire Resist/ Flame spread:   Class A (UL)
Light Reflectance:   0.75
Humidity Resistance: HumiGuard Plus HumiGuard Plus
Clean Room Classification: None
Anti-microbial: Bioblock+ BioBlock+

Accessibility

Accessibility: N

PHYSICAL DATA

Material: Mineral Fiber, Wet-formed
Texture: Fine
Pattern: Accents
Surface Finish: Factory applied latex paint
Weight: 0.90 (lbs/sqft)
Sq Ft (Sq Ft/Carton): 48.0
ASTM Classification: Type: III, Form: 2, Pattern: JZ
Insulation Value: R Factor-BTU: 1.6 , R Factor-Watts: 0.28
Warranty: 30 Year Guarantee Against Visible Sag
Against Mold/Mildew & Bacteria
