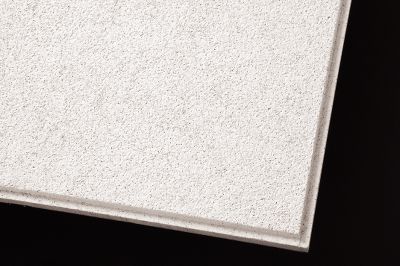

Cirrus High-NRC - 551

Line: Cirrus High-NRC

Product Type
Product Family
Chat Live
Cirrus High-NRC

DOWNLOADS

TOOLS

RECYCLED CONTENT

Total Recycled Content: 73%
Post-consumer Recycled Content: 1%
Pre-consumer Recycled Content: 72%
Calculate Recycled Content Value Calculate Recycled Content Value

LEED CREDITS

LEED Credit Area Contribution
EA Credit 1 Optimize Energy Performance
MR Credit 2.1, 2.2 Construction Waste Management
MR Credit 4.1, 4.2 Recycled Content
MR Credit 5.1, 5.2 Regional Materials
MR Credit 6.0 Rapidly Renewable Materials
EQ Credit 4.1 to 4.6 Low-Emitting Materials
EQ Credit 8.1, 8.2 Daylight and Views
LEED for Schools
EQ Prerequisite 3 Minimum Acoustical Performance
EQ Credit 4 Option 6 Low-Emitting Materials (CHPS)
EQ Credit 9 Enhanced Acoustical Performance for Schools
Armstrong Ceiling Recycling Program
Item # 551      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions: 24 x 48 x 7/8 IN
Grid Face: 15/16 IN
Edge Profile: Angled Tegular
Download dwg format

Shape: Panel
Available Colors:
White

White



PERFORMANCE SELECTION

Acoustics NRC: High Acoustical 0.75
Acoustics CAC:   35
Acoustics AC:   170
Fire Resist/ Flame spread:   Class A (UL)
Light Reflectance: High Light Reflectance 0.85
Humidity Resistance:   Standard
Clean Room Classification: None
Anti-microbial: Bioblock+ BioBlock+
Formaldehyde Level: No Added

Accessibility

Accessibility: N

PHYSICAL DATA

Material: Mineral Fiber, Wet-formed
Texture: Fine
Pattern: No Pattern
Surface Finish: Factory applied latex paint
Weight: 1.21 (lbs/sqft)
Sq Ft (Sq Ft/Carton): 48.0
ASTM Classification: Type: III, Form: 1, Pattern: E I C
Insulation Value: R Factor-BTU: 2.3 , R Factor-Watts: 0.40
Warranty: 30 Year Guarantee
Against Mold/Mildew & Bacteria

INSTALLATION SELECTION

Installation Method: Grid (Suspended)
Recommended Grid Systems

Prelude ML 15/16" Exposed Tee

Prelude XL 15/16" Exposed Tee
