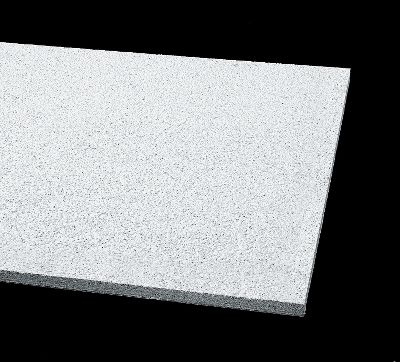

Cirrus High-NRC - 563

Line: Cirrus High-NRC

Product Type
Product Family
Item # 563      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions: 24 x 24 x 7/8 IN
Shape: Panel
Available Colors:
White White

White

PERFORMANCE SELECTION

Acoustics NRC: High Acoustical 0.75
Acoustics CAC:   35
Acoustics AC:   170
Light Reflectance: High Light Reflectance 0.85

Accessibility

Accessibility: N

PHYSICAL DATA

Material: Mineral Fiber, Wet-formed
Texture: Medium
Pattern: No Pattern
Weight: 1.33 (lbs/sqft)
Sq Ft (Sq Ft/Carton): 40.0
ASTM Classification: Type: III, Form: 1, Pattern: EIC
Insulation Value: R Factor-BTU: 2.3 , R Factor-Watts: 0.40

INSTALLATION SELECTION

Installation Method: Grid (Suspended)
Recommended Grid Systems
Formations Axiom
Prelude ML 15/16" Exposed Tee

Prelude XL 15/16" Exposed Tee
