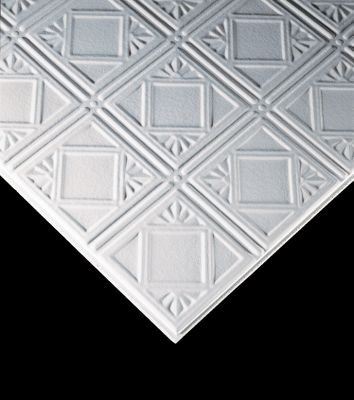

TinCraft - Triangles - 8010

Line: TinCraft

Product Type
Product Family
Chat Live
TinCraft

DOWNLOADS

TOOLS

RECYCLED CONTENT

Total Recycled Content: 55%
Post-consumer Recycled Content: 1%
Pre-consumer Recycled Content: 54%
Calculate Recycled Content Value Green Genie - LEED Calculator

LEED CREDITS

LEED Credit Area Contribution
MR Credit 2.1, 2.2 Construction Waste Management
MR Credit 4.1, 4.2 Recycled Content
MR Credit 5.1, 5.2 Regional Materials
MR Credit 6.0 Rapidly Renewable Materials
EQ Credit 4.1 to 4.6 Low-Emitting Materials
EQ Credit 4 Option 6 Low-Emitting Materials (CHPS)
Armstrong Ceiling Recycling Program
Item # 8010      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions:
24 x 24 x 3/4 IN

Edge Profile:
Flush Tegular
Download dwg format

Visual Design:
Triangles

Shape:
Panel

Available Colors:
White White

PERFORMANCE SELECTION

Acoustics NRC:   Not Applicable
Acoustics CAC:   35
Fire Resist/ Flame spread:   Class A (UL)
Light Reflectance:   0.78
Humidity Resistance:   Standard
Clean Room Classification: None
Anti-microbial:   Standard

Accessibility

Accessibility: N

PHYSICAL DATA

Material:
Mineral Fiber, Wet-formed
Texture:
Smooth
Pattern:
Accents
Surface Finish:
Factory applied latex paint
Weight:
1.23 (lbs/sqft)
Sq Ft (Sq Ft/Carton):
32.0
ASTM Classification:
Type: III, Form: 2, Pattern: J Z (classic embossed tin ceiling design)
Insulation Value:
R Factor-BTU: 1.6 , R Factor-Watts: 0.28

INSTALLATION SELECTION

Installation Method: Grid (Suspended)
Recommended Grid Systems

Suprafine XL 9/16" Exposed Tee

Suprafine ML 9/16" Exposed Tee
