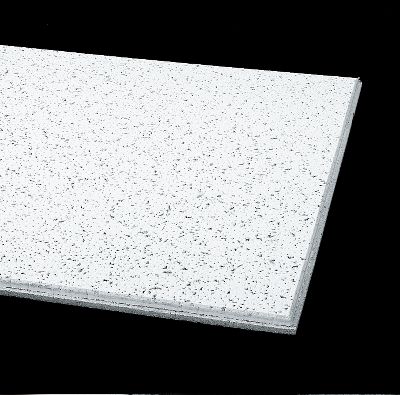

Cortega Lay-In

DOWNLOADS

TOOLS

RECYCLED CONTENT

Total Recycled Content: 34% - 41%
Post-consumer Recycled Content: 1% - 15%
Pre-consumer Recycled Content: 22% - 37%
Calculate Recycled Content Value Calculate Recycled Content Value

LEED CREDITS

LEED Credit Area Contribution
MR Credit 2.1, 2.2 Construction Waste Management
MR Credit 4.1, 4.2 Recycled Content
MR Credit 5.1, 5.2 Regional Materials
MR Credit 6.0 Rapidly Renewable Materials
MR Pilot Credit 61 Material Disclosure and Assessment
EQ Credit 4.1 to 4.6 Low-Emitting Materials
Armstrong Ceiling Recycling Program
Item # 2195      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions:
24 x 24 x 5/8 IN

Grid Face:
9/16 IN

Edge Profile:
Beveled Tegular
Download dwg format

Shape:
Panel

Available Colors:
White

White



PERFORMANCE SELECTION

Acoustics NRC:   0.55
Acoustics CAC:   35
Fire Resist/ Flame spread:   Class A (UL)
Light Reflectance:   0.82
Humidity Resistance:   Standard
Clean Room Classification: None
Anti-microbial:   Standard
Formaldehyde Level: Low

Accessibility

Accessibility: N

PHYSICAL DATA

Material:
Mineral Fiber, Wet-formed
Texture:
Medium
Pattern:
No Pattern
Surface Finish:
Factory applied latex paint
Weight:
0.63 (lbs/sqft)
Sq Ft (Sq Ft/Carton):
64.0
ASTM Classification:
Type: III, Form: 2, Pattern: C D
Insulation Value:
R Factor-BTU: 1.6 , R Factor-Watts: 0.28
