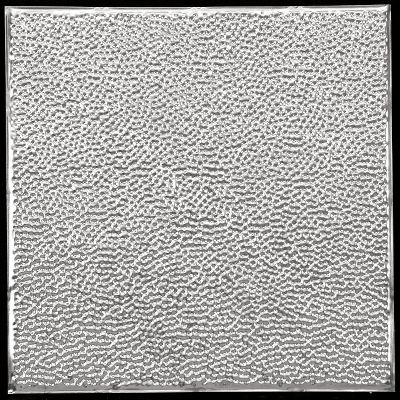

MetalWorks Tin - 56009 - 56009B1NU

Line: MetalWorks Tin

Product Type
Product Family
Chat Live
MetalWorks Tin

DOWNLOADS

TOOLS

LEED CREDITS

LEED Credit Area Contribution
MR Credit 2.1, 2.2 Construction Waste Management
MR Credit 4.1, 4.2 Recycled Content
MR Credit 5.1, 5.2 Regional Materials
EQ Credit 4.1 to 4.6 Low-Emitting Materials
EQ Credit 4.4 Low-Emitting Materials
EQ Credit 4 Option 6 Low-Emitting Materials (CHPS)
Item # 56009B1NU      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions:
24 x 48 x IN

Grid Face:

Edge Profile:
Nail-Up

Visual Design:
56009

Perforation Design:
B1 - Unperforated

Shape:
Panel

Available Colors:
Tin Chrome

Tin Chrome

Tin Copper

Tin Copper

Tin Bare Steel

Tin Bare Steel



PERFORMANCE SELECTION

Acoustics NRC:   N/A
Acoustics CAC:   N/A
Acoustics AC:   N/A
Fire Resist/ Flame spread:   Class A
Humidity Resistance:   Standard
Clean Room Classification: None
Anti-microbial:   Standard
Durability Impact Resistance Impact resistance
Maintainability Washability

Scrubability

Soil Resistance
Washable


Scrubable


Soil resistance

Accessibility

Accessibility: N

PHYSICAL DATA

Material:
Metal, Embossed
Texture:
Smooth
Pattern:
No Pattern
Surface Finish:
Varies depending on color
Weight:
0.38 (lbs/sqft)
Sq Ft (Sq Ft/Carton):
8.0
ASTM Classification:
Type: XX, Form: N/A, Pattern: J Z
Insulation Value:
R Factor-BTU: N/A , R Factor-Watts: N/A
