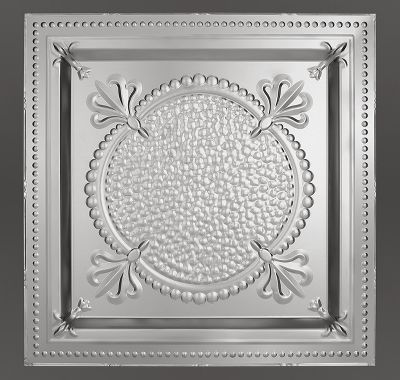

MetalWorks Tin - 6662B1L5

Line: MetalWorks Tin

Product Type
Product Family
Chat Live
MetalWorks Tin

DOWNLOADS

TOOLS

RECYCLED CONTENT

Total Recycled Content: 0%
Post-consumer Recycled Content: 0%
Pre-consumer Recycled Content: 0%
Calculate Recycled Content Value Calculate Recycled Content Value

LEED CREDITS

LEED Credit Area Contribution
MR Credit 4.1, 4.2 Recycled Content
MR Credit 5.1, 5.2 Regional Materials
MR Credit 6.0 Rapidly Renewable Materials
EQ Credit 4.1 to 4.6 Low-Emitting Materials
EQ Credit 4.4 Low-Emitting Materials
EQ Credit 4 Option 6 Low-Emitting Materials (CHPS)
Item # 6662B1L5      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions:
24 x 24 x 0.10 IN

Grid Face:
15/16 IN

Edge Profile:
Square Lay-In

Perforation Design:
B1 - Unperforated

Shape:
Panel

Available Colors:
Tin Lacquered Steel

Tin Lacquered Steel

Tin Bare Steel

Tin Bare Steel

Tin White

Tin White



PERFORMANCE SELECTION

Acoustics NRC:   N/A
Acoustics CAC:   N/A
Acoustics AC:   N/A
Fire Resist/ Flame spread:   Class A (IBC)
Light Reflectance:   0.77
Humidity Resistance:   Standard
Clean Room Classification: None
Anti-microbial:   Standard
Durability Impact Resistance Impact resistance
Maintainability Washability

Scrubability

Soil Resistance
Washable


Scrubable


Soil resistance

Accessibility

Accessibility: Yes

PHYSICAL DATA

Material:
Metal, Embossed
Texture:
Smooth
Pattern:
No Pattern
Surface Finish:
Varies depending on color
Weight:
0.52 (lbs/sqft)
Sq Ft (Sq Ft/Carton):
4.0
ASTM Classification:
Type: XX, Form: N/A, Pattern: J Z
Insulation Value:
R Factor-BTU: N/A , R Factor-Watts: N/A

INSTALLATION SELECTION

Installation Method: Grid (Suspended)
Recommended Grid Systems
Formations Axiom
Prelude ML 15/16" Exposed Tee

Prelude XL 15/16" Exposed Tee
