MetalWorks Canopies - 5377P2

Line: MetalWorks Canopies
Product Type
Product Family
Chat Live
MetalWorks Canopies

DOWNLOADS

Revit/BIM
Data Page
Product Specification
Installation
MSDS
Warranty

TOOLS

Calculate Recycled Content Value
Regional Materials Eligibility
Generate Custom LEED® Letter
Request Literature
Request Sample

LEED CREDITS

LEED Credit Area Contribution
MR Credit 4.1, 4.2 Recycled Content
Item # 5377P2      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions:
46-1/2 x 74-1/2 x 1-1.2 IN

Grid Face:

Edge Profile:
Square

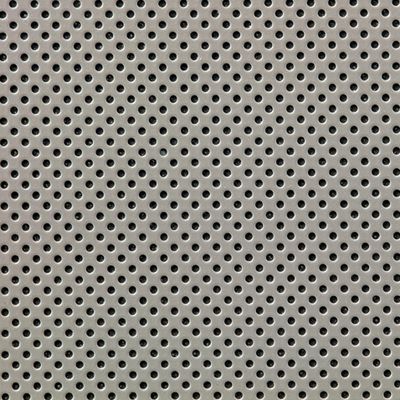

Perforation Design:
P2 - MicroPerforated

Shape:
Curved/Arc Panel

Arc Shape:
Valley

Available Colors:
Gun Metal Grey

Gun Metal Grey

White

White

Silver Grey

Silver Grey



PERFORMANCE SELECTION

Acoustics Sabin: 1.25
Fire Resist/ Flame spread:   Class A (FM)
Humidity Resistance:   Standard
Clean Room Classification: None
Anti-microbial:   Standard
Formaldehyde Level: No Added
Maintainability Washability

Scrubability

Soil Resistance 		Washable


Scrubable


Soil resistance

Accessibility

Accessibility: Yes

PHYSICAL DATA

Material:
Metal
Texture:
Smooth
Surface Finish:
Factory-applied powder coated finish
Weight:
62.4 (lbs/piece)
Sq Ft (Sq Ft/Carton):
Contact TechLine
