WoodWorks Channeled Plank - 5901CW7

Chat Live

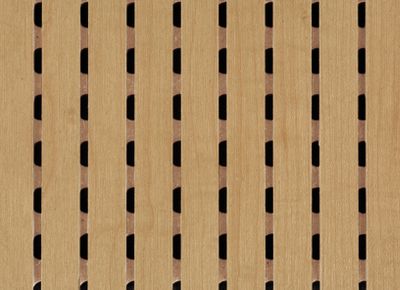

WoodWorks Channeled Plank

DOWNLOADS

MSDS

TOOLS

Calculate Recycled Content Value

Regional Materials Eligibility

Generate Custom LEED^® Letter

Request Literature

RECYCLED CONTENT

Total Recycled Content:

92%

Post-consumer Recycled Content:

0%

Pre-consumer Recycled Content:

92%

Calculate Recycled Content Value

Calculate Recycled Content Value

LEED CREDITS

LEED Credit Area Contribution
MR Credit 4.1, 4.2 Recycled Content MR Credit 4.1, 4.2 Recycled Content Increase the demand for building products that incorporate recycled content materials, thereby reducing impacts resulting from extraction and processing of virgin materials. Details on Requirements
MR Credit 5.1, 5.2 Regional Materials MR Credit 5.1, 5.2 Regional Materials Increase demand for building materials and products that are extracted and manufactured within the region, thereby supporting the use of indigenous resources and reducing the environmental impacts resulting from transportation. Details on Requirements
MR Credit 7.0 Certified Wood MR Credit 7.0 Certified Wood Encourage environmentally responsible forest management. Details on Requirements
LEED for Schools
EQ Prerequisite 3 Minimum Acoustical Performance EQ Prerequisite 3 Minimum Acoustical Performance Provide classrooms that are quiet in which teachers can speak to the class without straining their voices and students can effectively communicate with each other and the teacher. Details on Requirements
EQ Credit 9 Enhanced Acoustical Performance for Schools EQ Credit 9 Enhanced Acoustical Performance for Schools Provide classrooms that are quiet in which teachers can speak to the class without straining their voices and students can effectively communicate with each other and the teacher. Details on Requirements

Item # 5901CW7

VISUAL SELECTION

Dimensions:	6 x 120 x 3/4 IN
Grid Face:	15/16 IN
Edge Profile:	Square Tongue & Groove
Perforation Design:	W7
Shape:	Plank
Available Colors:	Natural Variations Light Cherry Natural Variations Dark Cherry Natural Variations Maple

PERFORMANCE SELECTION

Acoustics NRC:		0.95
Acoustics CAC:		N/A
Acoustics AC:		N/A
Fire Resist/ Flame spread:		Class A (HPVA)
Humidity Resistance:		Standard
Clean Room Classification:		None
Anti-microbial:		Standard

Accessibility

Accessibility:		N

PHYSICAL DATA

Material:	Medium Density Fiberboard
Texture:	Smooth
Pattern:	Planks
Surface Finish:	Ultra-violet clear semi-gloss coating
Weight:	2.2 (lbs/sqft)
Sq Ft (Sq Ft/Carton):	4.6275
ASTM Classification:	Type: N/A, Form: N/A, Pattern: N/A
Insulation Value:	R Factor-BTU: N/A , R Factor-Watts: N/A

INSTALLATION SELECTION

Installation Method:	Grid (Suspended)
Recommended Grid Systems
Prelude ML 15/16" Exposed Tee	Prelude XL 15/16" Exposed Tee
