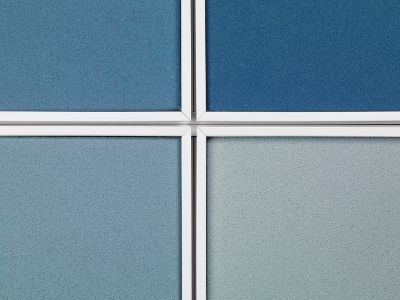

Ultima Health Zone - Z1936UC1

Line: Ultima Health Zone

Chat Live

Ultima Health Zone

DOWNLOADS

Product Specification

MSDS

TOOLS

Calculate Recycled Content Value

Regional Materials Eligibility

Generate Custom LEED^® Letter

Request Literature

RECYCLED CONTENT

Total Recycled Content:

71%

Post-consumer Recycled Content:

2%

Pre-consumer Recycled Content:

68%

Calculate Recycled Content Value

Calculate Recycled Content Value

LEED CREDITS

LEED Credit Area Contribution
MR Credit 2.1, 2.2 Construction Waste Management MR Credit 2.1, 2.2 Construction Waste Management Divert construction, demolition, and land clearing debris from disposal in landfills and incinerators. Redirect recovered resources back to the manufacturing process. Redirect reusable materials to the appropriate sites. Details on Requirements
MR Credit 4.1, 4.2 Recycled Content MR Credit 4.1, 4.2 Recycled Content Increase the demand for building products that incorporate recycled content materials, thereby reducing impacts resulting from extraction and processing of virgin materials. Details on Requirements
MR Credit 5.1, 5.2 Regional Materials MR Credit 5.1, 5.2 Regional Materials Increase demand for building materials and products that are extracted and manufactured within the region, thereby supporting the use of indigenous resources and reducing the environmental impacts resulting from transportation. Details on Requirements
MR Credit 6.0 Rapidly Renewable Materials MR Credit 6.0 Rapidly Renewable Materials Reduce the use and depletion of finite raw materials and long-cycle renewable materials by replacing them with rapidly renewable materials. Details on Requirements
EQ Credit 4.1 to 4.6 Low-Emitting Materials EQ Credit 4.1 to 4.6 Low-Emitting Materials Reduce the quantity of indoor air contaminants that are odorous, irritating and/or harmful to the comfort and well-being of installers and occupants. Details on Requirements
EQ Credit 4.4 Low-Emitting Materials EQ Credit 4.4 Low-Emitting Materials Reduce the quantity of indoor air contaminants that are odorous, irritating and/or harmful to the comfort and well-being of installers and occupants. Details on Requirements
LEED for Schools
EQ Prerequisite 3 Minimum Acoustical Performance EQ Prerequisite 3 Minimum Acoustical Performance Provide classrooms that are quiet in which teachers can speak to the class without straining their voices and students can effectively communicate with each other and the teacher. Details on Requirements
EQ Credit 4 Option 6 Low-Emitting Materials (CHPS) EQ Credit 4 Option 6 Low-Emitting Materials (CHPS) Reduce the quantity of indoor air contaminants that are odorous, irritating and/or harmful to the comfort and well-being of installers and occupants. Details on Requirements

Armstrong Ceiling Recycling Program

Item # Z1936UC1

VISUAL SELECTION

Dimensions:	24 x 24 x 3/4 IN
Grid Face:	9/16 IN
Edge Profile:	Beveled Tegular
Shape:	Panel
Available Colors:	Custom

PERFORMANCE SELECTION

Acoustics NRC:		0.70
Acoustics CAC:		35
Acoustics AC:		N/A
Fire Resist/ Flame spread:		Class A (UL)
Humidity Resistance:		HumiGuard Plus
Clean Room Classification:		None
Anti-microbial:		BioBlock
Formaldehyde Level:		No Added
Durability		Impact resistance
Maintainability		Washable Soil resistance

Accessibility

Accessibility:		N

PHYSICAL DATA

Material:	Mineral Fiber, Wet-formed
Texture:	Fine
Pattern:	No Pattern
Surface Finish:	UV Ink Digitally Printed on Durabrite Surface
Weight:	1.08 (lbs/sqft)
Sq Ft (Sq Ft/Carton):	Contact TechLine
ASTM Classification:	Type: IV, Form: 2, Pattern: E
Insulation Value:	R Factor-BTU: 2.20 , R Factor-Watts: 0.39
Warranty:	30 Year Guarantee Against Visible Sag

INSTALLATION SELECTION

Installation Method:	Grid (Suspended)
Recommended Grid Systems
Silhouette XL 9/16" Bolt Slot - 1/4" Reveal	Silhouette XL 9/16" Bolt Slot - 1/8" Reveal
