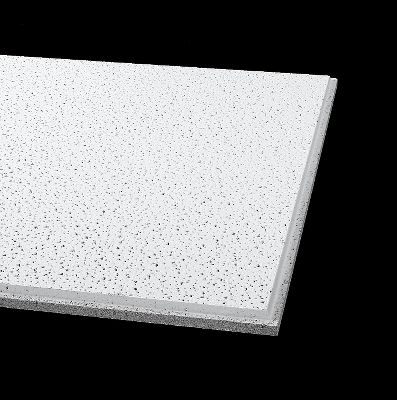

Fine Fissured - 1732

Line: Fine Fissured

Product Type
Product Family
Fine Fissured
Item # 1732      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions: 24 x 24 x 5/8 IN
Edge Profile: Angled Tegular
Download dwg format

Shape: Panel
Available Colors:
Adobe Adobe

Adobe
Camel Camel

Camel
Cream Cream

Cream
Haze Haze

Haze
Platinum Platinum

Platinum
White White

White

PERFORMANCE SELECTION

Acoustics NRC:   0.55
Acoustics CAC:   35
Fire Resist/ Flame spread:   Class A (UL)
Light Reflectance: High Light Reflectance 0.85
Humidity Resistance: HumiGuard Plus HumiGuard Plus
Clean Room Classification: None
Anti-microbial: Bioblock+ BioBlock+

Accessibility

Accessibility: N

PHYSICAL DATA

Material: Mineral Fiber, Wet-formed
Texture: Medium
Pattern: No Pattern
Surface Finish: Factory applied latex paint
Weight: 0.70 (lbs/sqft)
Sq Ft (Sq Ft/Carton): 64.0
ASTM Classification: Type: III, Form: 2, Pattern: C E
Insulation Value: R Factor-BTU: 1.5 , R Factor-Watts: 0.26
Warranty: 30 Year Guarantee Against Visible Sag
Against Mold/Mildew & Bacteria

INSTALLATION SELECTION

Installation Method: Grid (Suspended)
Recommended Grid Systems
Formations Axiom
Prelude ML 15/16" Exposed Tee

Prelude XL 15/16" Exposed Tee
