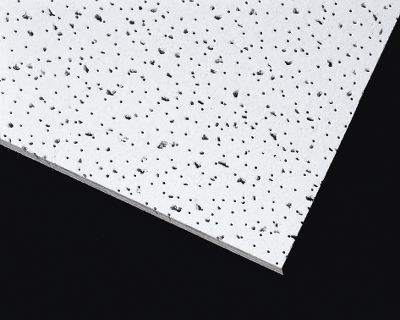

Ceramaguard Fine Fissured - 608

Line: Ceramaguard Fine Fissured

Product Type
Product Family
Ceramaguard Fine Fissured

DOWNLOADS

TOOLS

RECYCLED CONTENT & LEED CREDITS

Total Recycled Content: 38%
Post-consumer Recycled Content: 0%
Pre-consumer Recycled Content: 38%
LEED v4 & 2009 Information
Armstrong Ceiling Recycling Program
Item # 608      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions: 24 x 48 x 5/8 IN
Edge Profile: Square Lay-In
Download dwg format

Perforation Design: Perforated
Shape: Panel
Available Colors:
White White

White

PERFORMANCE SELECTION

Acoustics NRC:   0.55
Acoustics CAC: High Acoustical 40
Acoustics AC:   N/A
Fire Resist/ Flame spread: Fire Guard Fire Resistive
Light Reflectance:   0.82
Humidity Resistance: HumiGuard Max HumiGuard Max
Clean Room Classification: None
Anti-microbial:   Inherent
Maintainability Washability

Scrubability
Washable


Scrubable

Accessibility

Accessibility: N

PHYSICAL DATA

Material: Mineral Fiber, Wet-formed
Texture: Medium
Pattern: No Pattern
Surface Finish: Scrubbable factory-applied paint finish
Weight: 1.52 (lbs/sqft)
Sq Ft (Sq Ft/Carton): 48.0
ASTM Classification: Type: XX, Form: N/A, Pattern: CE
Insulation Value: R Factor-BTU: 1.4 , R Factor-Watts: 0.25
Warranty: 30 Year Guarantee Against Visible Sag
Against Mold/Mildew & Bacteria
