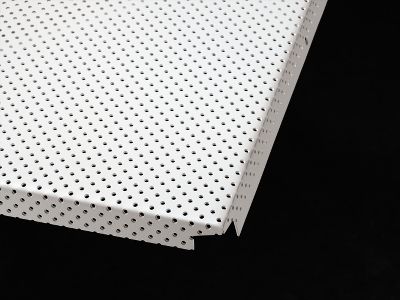

MetalWorks SecureLock - 5488P1

Line: MetalWorks SecureLock

Chat Live

MetalWorks SecureLock

DOWNLOADS

Product Specification

MSDS

TOOLS

Calculate Recycled Content Value

Regional Materials Eligibility

Generate Custom LEED^® Letter

Request Literature

RECYCLED CONTENT

Total Recycled Content:

30%

Post-consumer Recycled Content:

0%

Pre-consumer Recycled Content:

30%

Calculate Recycled Content Value

Calculate Recycled Content Value

LEED CREDITS

LEED Credit Area Contribution
MR Credit 2.1, 2.2 Construction Waste Management MR Credit 2.1, 2.2 Construction Waste Management Divert construction, demolition, and land clearing debris from disposal in landfills and incinerators. Redirect recovered resources back to the manufacturing process. Redirect reusable materials to the appropriate sites. Details on Requirements
MR Credit 4.1, 4.2 Recycled Content MR Credit 4.1, 4.2 Recycled Content Increase the demand for building products that incorporate recycled content materials, thereby reducing impacts resulting from extraction and processing of virgin materials. Details on Requirements
MR Credit 5.1, 5.2 Regional Materials MR Credit 5.1, 5.2 Regional Materials Increase demand for building materials and products that are extracted and manufactured within the region, thereby supporting the use of indigenous resources and reducing the environmental impacts resulting from transportation. Details on Requirements
EQ Credit 4.1 to 4.6 Low-Emitting Materials EQ Credit 4.1 to 4.6 Low-Emitting Materials Reduce the quantity of indoor air contaminants that are odorous, irritating and/or harmful to the comfort and well-being of installers and occupants. Details on Requirements
LEED for Schools
EQ Prerequisite 3 Minimum Acoustical Performance EQ Prerequisite 3 Minimum Acoustical Performance Provide classrooms that are quiet in which teachers can speak to the class without straining their voices and students can effectively communicate with each other and the teacher. Details on Requirements
EQ Credit 4 Option 6 Low-Emitting Materials (CHPS) EQ Credit 4 Option 6 Low-Emitting Materials (CHPS) Reduce the quantity of indoor air contaminants that are odorous, irritating and/or harmful to the comfort and well-being of installers and occupants. Details on Requirements
EQ Credit 9 Enhanced Acoustical Performance for Schools EQ Credit 9 Enhanced Acoustical Performance for Schools Provide classrooms that are quiet in which teachers can speak to the class without straining their voices and students can effectively communicate with each other and the teacher. Details on Requirements

Item # 5488P1

VISUAL SELECTION

Dimensions:	24 x 24 x IN
Grid Face:
Edge Profile:	Square Lay-In
Perforation Design:	P1 - Unperforated
Shape:	Panel
Available Colors:	White

PERFORMANCE SELECTION

Acoustics NRC:		N/A
Acoustics CAC:		36
Fire Resist/ Flame spread:		Class A (FM)
Light Reflectance:		0.77
Humidity Resistance:		Standard
Clean Room Classification:		None
Anti-microbial:		Standard
Durability		Impact resistance
Maintainability		Washable Scrubable Soil resistance

Accessibility

Accessibility:		N

PHYSICAL DATA

Material:	Metal, Formed
Texture:	Smooth
Pattern:	No Pattern
Surface Finish:	Factory-applied powder coated finish
Weight:	2.24 (lbs/sqft)
Sq Ft (Sq Ft/Carton):	32.0
ASTM Classification:	Type: XX, Form: N/A, Pattern: G
Insulation Value:	R Factor-BTU: N/A , R Factor-Watts: N/A

INSTALLATION SELECTION

Installation Method:	Grid (Suspended)
Recommended Grid Systems
Prelude XL 15/16" Exposed Tee
