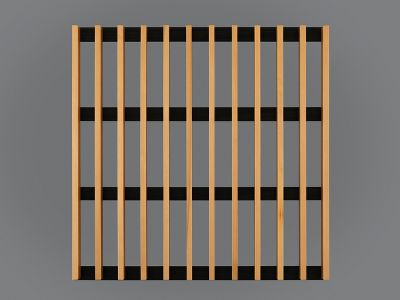

WoodWorks Grille Tegular - 12 vertical blades - 662912

Line: WoodWorks Grille Tegular

Product Type
Product Family
Chat Live
Item # 662912      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions: 24 x 24 x 2 IN
Edge Profile: Square Tegular
Visual Design: 12 vertical blades
Shape: Panel
Available Colors:
Grille Dark Cherry Grille Dark Cherry
Grille Light Cherry Grille Light Cherry
Grille Maple Grille Maple
Grille Walnut Grille Walnut
Grille White Grille White

PERFORMANCE SELECTION

Acoustics NRC: High Acoustical 0.85
Acoustics CAC:   N/A
Acoustics AC:   N/A
Fire Resist/ Flame spread:   Class C
Humidity Resistance:   Standard
Clean Room Classification: None
Anti-microbial:   Standard

Accessibility

Accessibility: Yes

PHYSICAL DATA

Material: Wood
Texture: Smooth
Pattern: No Pattern
Surface Finish: Clear or tinted Semigloss coating (all finishes but White); White has a lacquer finish
Weight: 0.875 (lbs/sqft)
Sq Ft (Sq Ft/Carton): 4.0
ASTM Classification: Type: XX - Wood, Form: N/A, Pattern: Z - Natural Wood
Insulation Value: R Factor-BTU: N/A , R Factor-Watts: N/A

INSTALLATION SELECTION

Installation Method: Grid (Suspended)
Recommended Grid Systems

Prelude XL 15/16" Exposed Tee
