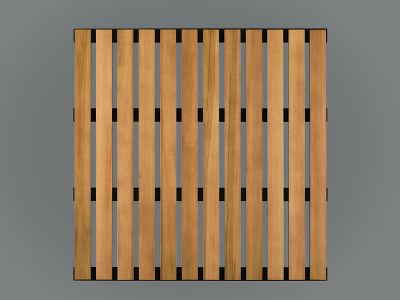

WoodWorks Grille Tegular - 12 horizontal blades - 663008

Line: WoodWorks Grille Tegular

Product Type
Product Family
Item # 663008      Relative Installed Cost Relative Installed Cost Relative Installed Cost Relative Installed Cost



VISUAL SELECTION

Dimensions: 24 x 48 x 1 IN
Edge Profile: Square Tegular
Visual Design: 12 horizontal blades
Shape: Panel
Available Colors:
Grille Dark Cherry Grille Dark Cherry

Grille Dark Cherry
Grille Light Cherry Grille Light Cherry

Grille Light Cherry
Grille Maple Grille Maple

Grille Maple
Grille Walnut Grille Walnut

Grille Walnut
Grille White Grille White

Grille White

PERFORMANCE SELECTION

Acoustics NRC: High Acoustical 0.85
Acoustics CAC:   N/A
Acoustics AC:   N/A
Fire Resist/ Flame spread:   Class C
Humidity Resistance:   Standard
Clean Room Classification: None
Anti-microbial:   Standard

Accessibility

Accessibility: Yes

PHYSICAL DATA

Material: Wood
Texture: Smooth
Pattern: No Pattern
Surface Finish: Clear or tinted Semigloss coating (all finishes but White); White has a lacquer finish
Weight: 0.775 (lbs/sqft)
Sq Ft (Sq Ft/Carton): 8.0
ASTM Classification: Type: XX - Wood, Form: N/A, Pattern: Z - Natural Wood
Insulation Value: R Factor-BTU: N/A , R Factor-Watts: N/A

INSTALLATION SELECTION

Installation Method: Grid (Suspended)
Recommended Grid Systems

Suprafine XL 9/16" Exposed Tee
