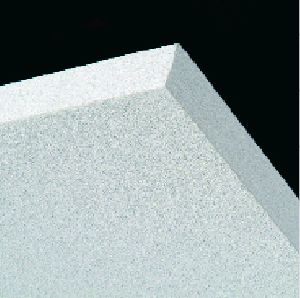

SoundScapes Shapes - 5444

Line: SoundScapes Shapes

Chat Live

SoundScapes Shapes

DOWNLOADS

Product Specification

MSDS

TOOLS

Calculate Recycled Content Value

Regional Materials Eligibility

Generate Custom LEED^® Letter

Request Literature

RECYCLED CONTENT

Total Recycled Content:

71%

Post-consumer Recycled Content:

12%

Pre-consumer Recycled Content:

59%

Calculate Recycled Content Value

Calculate Recycled Content Value

LEED CREDITS

LEED Credit Area Contribution
EA Credit 1 Optimize Energy Performance EA Credit 1 Optimize Energy Performance Achieve increasing levels of energy performance above the baseline standard to reduce environmental and economic impacts associated with excessive energy use. Details on Requirements
MR Credit 4.1, 4.2 Recycled Content MR Credit 4.1, 4.2 Recycled Content Increase the demand for building products that incorporate recycled content materials, thereby reducing impacts resulting from extraction and processing of virgin materials. Details on Requirements
MR Credit 5.1, 5.2 Regional Materials MR Credit 5.1, 5.2 Regional Materials Increase demand for building materials and products that are extracted and manufactured within the region, thereby supporting the use of indigenous resources and reducing the environmental impacts resulting from transportation. Details on Requirements
EQ Credit 4.1 to 4.6 Low-Emitting Materials EQ Credit 4.1 to 4.6 Low-Emitting Materials Reduce the quantity of indoor air contaminants that are odorous, irritating and/or harmful to the comfort and well-being of installers and occupants. Details on Requirements
EQ Credit 4.4 Low-Emitting Materials EQ Credit 4.4 Low-Emitting Materials Reduce the quantity of indoor air contaminants that are odorous, irritating and/or harmful to the comfort and well-being of installers and occupants. Details on Requirements
EQ Credit 8.1, 8.2 Daylight and Views EQ Credit 8.1, 8.2 Daylight and Views Provide the occupants with a connection between indoor spaces and the outdoors through the introduction of daylight and views into the regularly occupied areas of the building. Details on Requirements
LEED for Schools
EQ Prerequisite 3 Minimum Acoustical Performance EQ Prerequisite 3 Minimum Acoustical Performance Provide classrooms that are quiet in which teachers can speak to the class without straining their voices and students can effectively communicate with each other and the teacher. Details on Requirements
EQ Credit 4 Option 6 Low-Emitting Materials (CHPS) EQ Credit 4 Option 6 Low-Emitting Materials (CHPS) Reduce the quantity of indoor air contaminants that are odorous, irritating and/or harmful to the comfort and well-being of installers and occupants. Details on Requirements
EQ Credit 9 Enhanced Acoustical Performance for Schools EQ Credit 9 Enhanced Acoustical Performance for Schools Provide classrooms that are quiet in which teachers can speak to the class without straining their voices and students can effectively communicate with each other and the teacher. Details on Requirements

Armstrong Ceiling Recycling Program

Item # 5444

VISUAL SELECTION

Dimensions:	48 x 48 x 7/8 IN
Grid Face:
Edge Profile:	Square
Shape:	Radial/Trapezoid
Available Colors:	Sky Moss Shell White Pale Lemon Pecan Stone

PERFORMANCE SELECTION

Acoustics NRC:		N/A
Acoustics CAC:		N/A
Acoustics AC:		N/A
Acoustics Sabin:		23.84
Fire Resist/ Flame spread:		Class A (UL)
Light Reflectance:		0.90
Humidity Resistance:		Standard
Clean Room Classification:		None
Anti-microbial:		Inherent
Formaldehyde Level:		Low

Accessibility

Accessibility:		Yes

PHYSICAL DATA

Material:	Fiberglass, Glass reinforced
Texture:	Fine
Pattern:	No Pattern
Surface Finish:	Factory-applied latex paint on DuraBrite acoustically transparent membrane
Weight:	0.63 (lbs/sqft)
Sq Ft (Sq Ft/Carton):	16.0
ASTM Classification:	Type: XII, Form: 2, Pattern: E
Insulation Value:	R Factor-BTU: N/A , R Factor-Watts: N/A
Warranty:	30 Year Guarantee Against Mold/Mildew & Bacteria
