Silhouette XL 9/16" Bolt Slot - 1/8" Reveal
Product Type
  • You Have Selected:Suspension SystemsChange Product Type
  • Ceilings
  • Walls
  • Trims and Transitions
  • Building Perimeter Systems
  • Drywall Grid Systems
Line
  • You Have Selected:Silhouette XL 9/16" Bolt Slot - 1/8" RevealChange Line
  • 1-1/2" Co-Extruded Clean Room
  • 15/16" Co-Extruded Clean Room
  • DC FlexZone Silhouette
  • DC FlexZone Suprafine
  • Exposed Tee System Accessories
  • Interlude XL HRC
  • MetalWorks Linear Grid System
  • Prelude Concealed Tee
  • Prelude ML 15/16" Exposed Tee
  • Prelude Plus XL Aluminum 15/16" Exposed Tee
  • Prelude Plus XL Fire Guard 15/16" Exposed Tee
  • Prelude Plus XL Stainless Steel 15/16" Exposed Tee
  • Prelude XL 15/16" Exposed Tee
  • Prelude XL 15/16" for Exterior Applications
  • Prelude XL 360 Painted
  • Prelude XL Fire Guard 15/16" Exposed Tee
  • Prelude XL HRC
  • Silhouette XL 9/16" Bolt Slot - 1/4" Reveal
  • SingleSpan
  • Sonata 9/16" Dimensional Tee
  • Suprafine ML 9/16" Exposed Tee
  • Suprafine XL 9/16" Exposed Tee
  • Suprafine XL Fire Guard 9/16" Exposed Tee
  • Suprafine XL HRC
  • Trimlok 9/16" Screw-Slot
Space / Use Area
  • Atrium, Lobby / Reception Areas
  • Corridors
  • Exterior Soffits
  • Offices / Conference Rooms - Open Plan
  • Private Patient Rooms
Performance
LEED
  • You Have Selected:Regional MaterialsChange LEED
  • Construction Waste Management
  • High Recycled Content
  • Recycled Content
System Type
Face Profile
Duty Rating
Chat Live

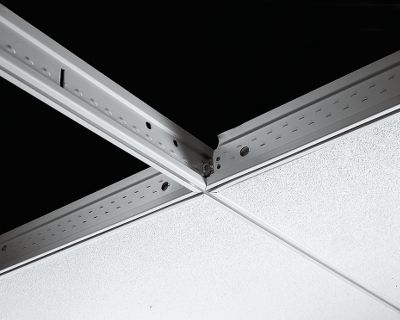

Silhouette XL 9/16

Downloads

CAD Drawings
Data Page
MSDS
Warranty

Tools

Calculate Recycled Content Value
Regional Materials Eligibility
Generate Custom LEED® Letter
CSI Spec Form
Request Literature
Request Sample

Key Features

Material: Hot-dipped Galvanized Steel
Surface Finish: Baked polyester paint
Face Dimension: 2IN
Profile Type: Bolt-Slot
Seismic Rating: C, DEF
End Detail - Main Beam: Coupling
End Detail - Cross Tee: Staked-on clip (XL)
Cross Tee/Main Beam Interface: Flush fit
Reports: ESR-1308
Colors: White

LEED CREDITS

Potential LEED Credit Area Contribution
MR Credit 2.1, 2.2 Construction Waste Management
MR Credit 4.1, 4.2 Recycled Content
MR Credit 5.1, 5.2 Regional Materials
19 Products Compare up to 4 Products: Compare

Main Beam
Item # Description Length Face/Width Height Hangar Spacing
4'/5'
76008
 12ft ID Main Beam - Notched 24in OC 144 IN 9/16 IN 1-3/4 IN 13.10 PLF
6.61 PLF
76018
 12ft HD Main Beam - Notched 24in OC 144 IN 9/16 IN 1-3/4 IN 16.35 PLF
7.80 PLF
76028
 10ft ID Main Beam - Notched 24in OC 120 IN 9/16 IN 1-3/4 IN 13.10 PLF
6.61 PLF
76038
 12ft ID Main Beam - Notched 48in OC 144 IN 9/16 IN 1-3/4 IN 13.10 PLF
6.61 PLF
76068
 120in ID Main Beam 120 IN 9/16 IN 1-3/4 IN 13.10 PLF
6.61 PLF

Cross Tee
Item # Description Length Face/Width Height Hangar Spacing
4'/5'
XL76108
 1ft Cross Tee 1/8" Reveal Unnotched 12 IN 9/16 IN 1-3/4 IN 69.69 PLF
XL76208
 2ft Cross Tee 1/8" Reveal Unnotched 24 IN 9/16 IN 1-3/4 IN 69.69 PLF
XL76408
 4ft Cross Tee 1/8" Reveal Unnotched 48 IN 9/16 IN 1-3/4 IN 14.11 PLF
XL76458
 4ft Cross Tee 1/8" Reveal Center Notched both Side 48 IN 9/16 IN 1-3/4 IN 12.60 PLF
XL76468
 4ft Cross Tee 1/8" Reveal Center Notched Side 48 IN 9/16 IN 1-3/4 IN 13.01 PLF
XL76508
 5ft Cross Tee 1/8" Reveal Unnotched 60 IN 9/16 IN 1-3/4 IN 9.00 PLF
XL76558
 5ft Cross Tee1/8" Reveal Center Notched both Sides 60 IN 9/16 IN 1-3/4 IN 7.00 PLF
XL76708
 30in Cross Tee 1/8" RevealUnnotched 30 IN 9/16 IN 1-3/4 IN 47.76 PLF

Molding
Item # Description Length Face/Width Height Hangar Spacing
4'/5'
7877
 10ft Seismic Shadow Molding 120 IN 15/16 IN 15/16 IN
7878
 10ft Seismic Shadow Molding 120 IN 15/16 IN 15/16 IN
7880
 8ft Flexible Angle Molding 96 IN 15/16 IN 1 IN
7882
 8ft Flexible Angle Molding 96 IN 15/16 IN 7/8 IN
7897
 10ft Seismic Shadow Molding 120 IN 15/16 IN 15/16 IN

Transition
Item # Description Length Face/Width Height Hangar Spacing
4'/5'
AXSJ
 Axiom Seismic Slip Joint 120 IN 2 IN
